Iron Dog
With the Iron Dog you have more than just a usual wood-burning stove. You have found a trustworthy friend and a good companion for many years. In front of fire you can lean back and relax.
BRUNNER's "Iron Dogs" share all the experience and know-how, required to build an outstanding cast iron stove of remarkable quality. That's why they gave them a special name.
TECHNICAL DATA
Nominal Heating Power:
Consumption/h:
Space Heat Capacity:
Efficiency:
APPLIANCE DATA
Dimensions (H x W x D):
Glass Surface (H x W):
Combustion Chamber Opening:
Chimney Flue Connection:
Chimney Flue Diameter:
Permissible Fuel Quantity:
Combustion Chamber Depth:
Recommended Log Length:
Weight of Cast Iron:
Combustion air requirement:
Tested & approved to European Standard EN 13240
7kw
2kg
50 - 90m²
80.6%
680 x 437 x 630 mm
195 x 150 mm
200 x 245 mm
Top/Back
130mm
1.5 - 2.5kg
400mm
250 - 330mm
130kg
15m3/h
TECHNICAL DATA
Nominal Heating Power:
Consumption/h:
Space Heat Capacity:
Efficiency:
APPLIANCE DATA
Dimensions (H x W x D):
Glass Surface (H x W):
Combustion Chamber Opening:
Chimney Flue Connection:
Chimney Flue Diameter:
Permissible Fuel Quantity:
Combustion Chamber Depth:
Recommended Log Length:
Weight of Cast Iron:
Combustion air requirement:
Tested & approved to European Standard EN 13240
7kw
2kg
50 - 90m²
80.6%
730 x 540 x 610 mm
245 x 105 mm
250 x 210 mm
Top/Back
130mm
1.5 - 2.5kg
400mm
250 - 330mm
150kg
15m3/h
TECHNICAL DATA
Nominal Heating Power:
Consumption/h:
Space Heat Capacity:
Efficiency:
APPLIANCE DATA
Dimensions (H x W x D):
Glass Surface (H x W):
Combustion Chamber Opening:
Chimney Flue Connection:
Chimney Flue Diameter:
Permissible Fuel Quantity:
Combustion Chamber Depth:
Recommended Log Length:
Weight of Cast Iron:
Combustion air requirement:
Tested & approved to European Standard EN 13240
7kw
2kg
60 - 110m²
82%
760 x 800 x 520 mm
285 x 450 mm
255 x 218 mm
Back
150mm
1.5 - 2.5kg
600mm
250/330/500mm
240kg
18m3/h
TECHNICAL DATA
Nominal Heating Power:
Consumption/h:
Space Heat Capacity:
Efficiency:
APPLIANCE DATA
Dimensions (H x W x D):
Glass Surface (H x W):
Combustion Chamber Opening:
Chimney Flue Connection:
Chimney Flue Diameter:
Permissible Fuel Quantity:
Combustion Chamber Depth:
Recommended Log Length:
Weight of Cast Iron:
Combustion air requirement:
Tested & approved to European Standard EN 13240
8kw
2.5kg
60-110m²
82%
810 x 940 x 625 mm
207 x 102 mm
238 x 267 mm
Top/Back
130mm
2-3kg
450mm
250-330mm
310kg
18m3/h
TECHNICAL DATA
Nominal Heating Power:
Consumption/h:
Space Heat Capacity:
Efficiency:
APPLIANCE DATA
Dimensions (H x W x D):
Glass Surface (H x W):
Combustion Chamber Opening:
Chimney Flue Connection:
Chimney Flue Diameter:
Permissible Fuel Quantity:
Combustion Chamber Depth:
Recommended Log Length:
Weight of Cast Iron:
Combustion air requirement:
Tested & approved to European Standard EN 13240
7.7kw
2.2kg
50-90m²
85.3%
692 x 702 x 592 mm
226 x 449 mm
216 x 449 mm
Back
150mm
1.5 - 2.5 kg
490mm
250-330mm
220kg
18m3h

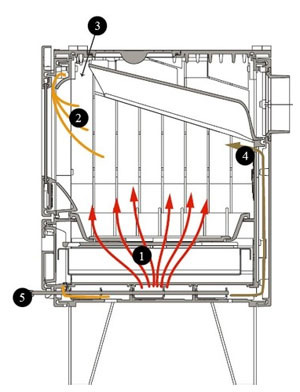

Sophisticated combustion air supply system combines a and even burning of wood with reduced emissions and minimal level of particulates.
Primary air (1) is streaming right onto the wood, smoothly driving the process of decarburisation.
Secondary air (2) is keeping the viewing glass clean and oxidizes the combustion gases before they slip behind the flame deflector (3).
In the back of combustion chamber, the gases are stirred with tertiary air (4) to let them ignite instantly.
Adjustment of air supply is carried out with a single lever (5). It's not possible to think of a more simple solution. High degree of efficiency is reached by combining large areas for heat exchange and special combustion gas deflectors.
